STB11NB40-1, N-CHANNEL PowerMESH MOSFET

www.DataSheet4U.com N-CHANNEL 400V - 0.48 Ω - 10.7A D2PAK/I2PAK PowerMESH™ MOSFET Table 1.General .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

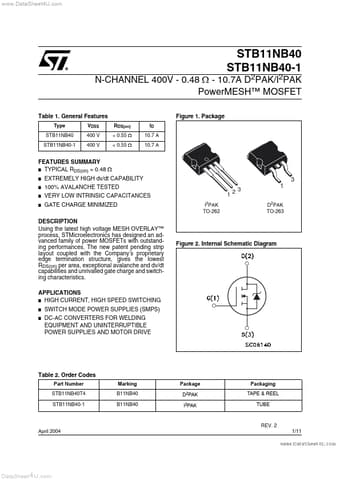

datasheet Preview Page 1 from Datasheet4u.com

STB11NB40-1_STMicroelectronics.pdf

STB11NB40-1 Datasheet Preview — Preview of STB11NB40-1 PDF

Datasheet Details

Part number:

STB11NB40-1

Manufacturer:

STMicroelectronics ↗

File Size:

406.49 KB

Description:

N-CHANNEL PowerMESH MOSFET

Features

* Type STB11NB40 STB11NB40-1 VDSS 400 V 400 V RDS(on) < 0.55 Ω < 0.55 Ω ID 10.7 A 10.7 A STB11NB40 STB11NB40-1 Figure 1. Package FEATURES SUMMARY
* TYPICAL RDS(on) = 0.48 Ω
* EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED VERY LOW INTRINSIC CAPACITANCES GATE CHARGE

Applications

* HIGH CURRENT, HIGH SPEED SWITCHING
* Figure 2. Internal Schematic Diagram SWITCH MODE POWER SUPPLIES (SMPS) DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE Table 2. Order Codes Part Number STB11NB40T4 STB11NB40-1 Marking B11NB40 B11NB40 Pa
