STB11NB40, N - CHANNEL ENHANCEMENT MODE PowerMESH MOSFET

www.DataSheet4U.com STB11NB40 N - CHANNEL ENHANCEMENT MODE PowerMESH™ MOSFET TYPE STB11NB40 s s s s s V DSS 400 V R DS(on) < 0.55 Ω ID 10.7 A TYP.
Using the latest high voltage MESH OVERLAY™ process, SGS-Thomson has designed an advanced family of power MOSFETs with outstanding performances.

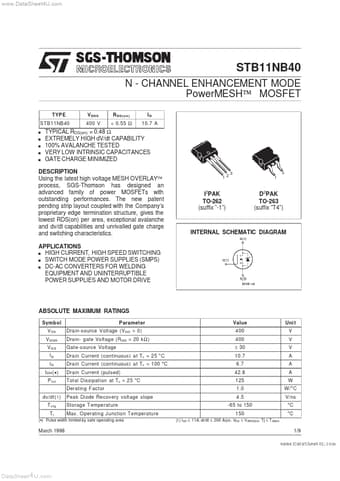

datasheet Preview Page 1 from Datasheet4u.com

STB11NB40_STMicroelectronics.pdf

STB11NB40 Datasheet Preview — Preview of STB11NB40 PDF

Datasheet Details

Part number:

STB11NB40

Manufacturer:

STMicroelectronics ↗

File Size:

247.87 KB

Description:

N - CHANNEL ENHANCEMENT MODE PowerMESH MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE 3 1 I2PAK TO-262 (suffix ”-1”) D2PAK TO-263 (suffix ”T4”) INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V
