STB160NF02L N-CHANNEL POWER MOSFET

ST Microelectronics

Description

www.DataSheet4U.com N-CHANNEL 20V - 0.0018Ω - 160A D2PAK STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STB160NF02L s s s s s STB160NF02L VDSS 20 V .
This Power MOSFET is the latest development of STMicroelectronics unique “Single Feature Size™” strip-based process.

📥 Download Datasheet

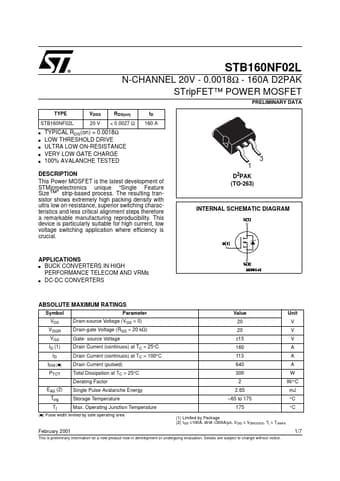

STB160NF02L Datasheet Preview — Preview of STB160NF02L PDF

Datasheet Specifications

Part number: STB160NF02L
Manufacturer: STMicroelectronics ↗
File Size: 274.94 KB
Datasheet: STB160NF02L_STMicroelectronics.pdf
Description: N-CHANNEL POWER MOSFET

Applications

* s BUCK CONVERTERS IN HIGH PERFORMANCE TELECOM AND VRMs s DC-DC CONVERTERS ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID (1) ID IDM (q) PTOT EAS (2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos) at TC = 25°C Drain C
