STGD3HF60WD Datasheet - ST Microelectronics

STGD3HF60WD_STMicroelectronics.pdf

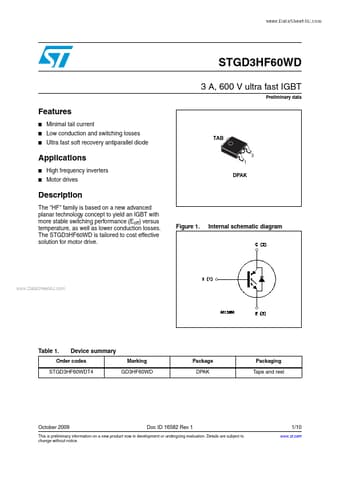

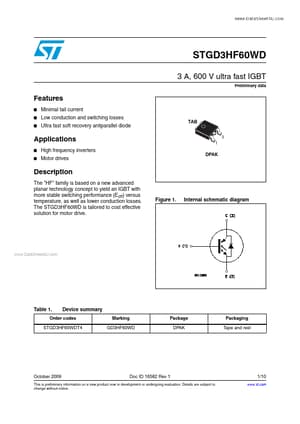

STGD3HF60WD Datasheet Preview — Preview of STGD3HF60WD PDF

Datasheet Details

Part number:

STGD3HF60WD

Manufacturer:

STMicroelectronics ↗

File Size:

259.40 KB

Description:

600v ultra fast igbt.

STGD3HF60WD, 600V ultra fast IGBT

The "HF" family is based on a new advanced planar technology concept to yield an IGBT with more stable switching performance (Eoff) versus temperature, as well as lower conduction losses.

The STGD3HF60WD is tailored to cost effective solution for motor drive.

Figure 1.

Internal schematic diagram
