STGD3NB60H Datasheet - ST Microelectronics

N-CHANNEL IGBT

STGD3NB60H General Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding perfomances. The suffix ”H” identifies a family optimized to achieve very low switching times for high frequency applications.

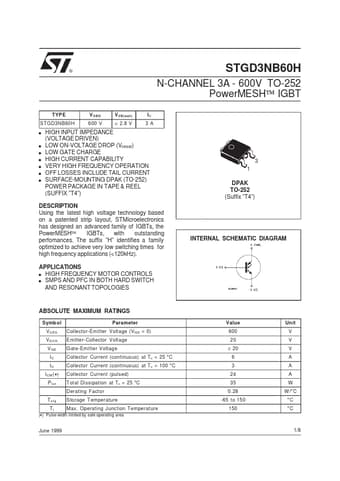

STGD3NB60H Datasheet (86.66 KB)

STGD3NB60H Datasheet Preview — Preview of STGD3NB60H PDF

Datasheet Details

Part number:

STGD3NB60H

Manufacturer:

STMicroelectronics ↗

File Size:

86.66 KB

Description:

N-channel igbt.
® STGD3NB60H N-CHANNEL 3A - 600V TO-252 PowerMESH™ IGBT TYPE STGD3NB60H s V CES 600 V V CE(sat ) < 2.8 V IC 3 A s s s s s s HIGH INPUT IMPEDANC.
