STGD3NB60HD Datasheet - STMicroelectronics

STGD3NB60HD, N-CHANNEL 6A - 600V - DPAK PowerMESH IGBT

www.DataSheet4U.com STGD3NB60HD N-CHANNEL 6A - 600V - DPAK PowerMESH™ IGBT TYPE STGD3NB60HD s s s s s VCES 600 V VCE(sat) (Max) @25°C < 2.8 V IC @.
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™.

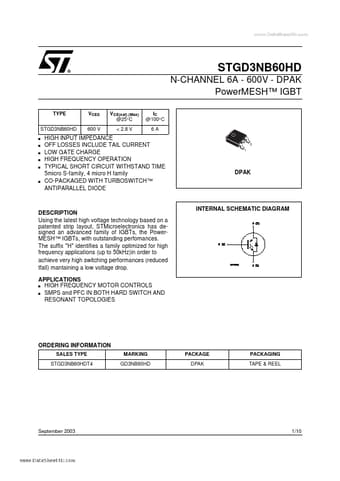

 Datasheet Preview Page 1

STGD3NB60HD_STMicroelectronics.pdf

Preview of STGD3NB60HD PDF

Datasheet Details

Part number:

STGD3NB60HD

Manufacturer:

STMicroelectronics ↗

File Size:

417.73 KB

Description:

N-CHANNEL 6A - 600V - DPAK PowerMESH IGBT

Applications

* (up to 50kHz)in order to achieve very high switching performances (reduced tfall) mantaining a low voltage drop. APPLICATIONS HIGH FREQUENCY MOTOR CONTROLS s SMPS and PFC IN BOTH HARD SWITCH AND RESONANT TOPOLOGIES s INTERNAL SCHEMATIC DIAGRAM ORDERING INFORMATION SALES TYPE STGD3NB60HDT4 MARKING
