STGD3NB60F N-CHANNEL IGBT

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding performances. The suffix “F” identifies a family optimized to achieve very low switching times for frequency applications (<4.

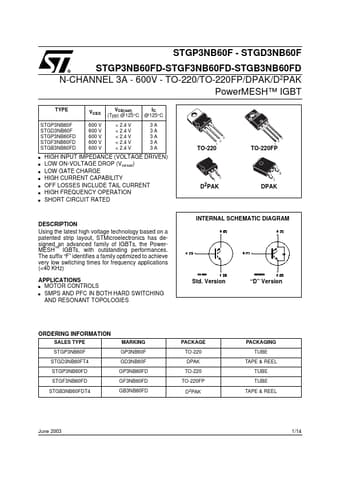

STGP3NB60F - STGD3NB60F STGP3NB60FD-STGF3NB60FD-STGB3NB60FD N-CHANNEL 3A - 600V - TO-220/TO-220FP/DPAK/D2PAK PowerMESH™ IGBT TYPE STGP3NB60F STGD3NB60F STGP3NB60FD STGF3NB60FD STGB3NB60FD s s s s s s s VCES 600 V 600 V 600 V 600 V 600 V VCE(sat) (Typ) @125°C < 2.4 V < 2.4 V < 2.4 V < 2.4 V < 2.4 V IC @125°C 3A 3A 3A 3A 3A 3 1 2 1 2 3 TO-220 TO-220FP HIGH INPUT IMPEDANCE (VOLTAGE DRIVEN) LOW ON-VOLTAGE DROP (Vcesat) LOW GATE CHARGE HIGH CURRENT CAPABILITY OFF LOSSES INCLUDE TAIL CURRENT H.
