STGD3NC120H - 7A 1200V very fast IGBT

STMicroelectronics

STGD3NC120H Datasheet Preview — Preview of STGD3NC120H PDF

Datasheet Details

Part number	STGD3NC120H
Manufacturer	STMicroelectronics ↗
File Size	894.96 KB
Description	7A 1200V very fast IGBT
Datasheet	STGD3NC120H-STMicroelectronics.pdf

STGD3NC120H Product details

Description

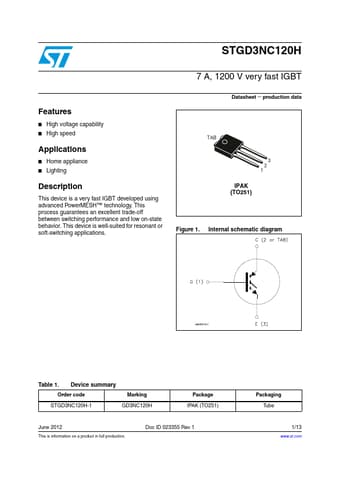

This device is a very fast IGBT developed using advanced PowerMESH™ technology. production data TAB 3 2 1 IPAK (TO251) Figure 1. Internal schematic diagram Table 1. Device summary Order code Marking STGD3NC120H-1 GD3NC120H Package IPAK (TO251) June 2012 This is information on a product in full pr

Features

High voltage capability.
High speed.
