STGD3NB60SD Datasheet - ST Microelectronics

N-CHANNEL IGBT

STGD3NB60SD General Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding perfomances. The suffix "S" identifies a family optimized to achieve minimum on-voltage drop for low frequency applications (.

STGD3NB60SD Datasheet (322.75 KB)

STGD3NB60SD Datasheet Preview — Preview of STGD3NB60SD PDF

Datasheet Details

Part number:

STGD3NB60SD

Manufacturer:

STMicroelectronics ↗

File Size:

322.75 KB

Description:

N-channel igbt.

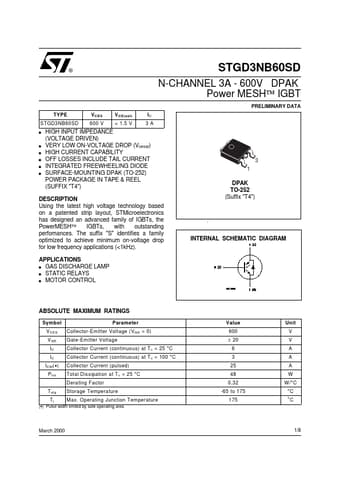

® STGD3NB60SD N-CHANNEL 3A - 600V DPAK Power MESH™ IGBT PRELIMINARY DATA TYPE STGD3NB60SD s VCES 600 V V CE(sat) < 1.5 V IC 3A s s s s s HIGH I.
