STGD6NC60H

The STGD6NC60H is N-CHANNEL IGBT designed by ST Microelectronics.

Product Overview

ST Microelectronics

Datasheet Details

Part number	STGD6NC60H
Manufacturer	STMicroelectronics
File Size	477.03 KB
Description	N-CHANNEL IGBT
Datasheet	STGD6NC60H_STMicroelectronics.pdf

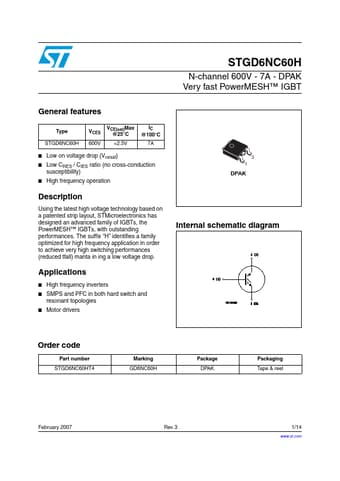

Additional preview pages of the STGD6NC60H datasheet.

Product details

Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding performances. High frequency inverters SMPS and PFC in both hard switch and resonant t

Features

Type STGD6NC60H.
VCES 600V VCE(sat)Max @25°C.
