STGD10NC60S

Fast IGBT

STGD10NC60S Features

* Very low on-voltage drop (VCE(sat)) Minimum power losses at 5 kHz in hard switching Optimized performance for medium operating frequencies 1 3 1 2 3 Application

* Medium frequency motor control DPAK TO-220 Description This IGBT utilizes the advanced PowerMESHâ„¢ process r

STGD10NC60S General Description

This IGBT utilizes the advanced PowerMESHâ„¢ process resulting in an excellent trade-off between switching performance and low on-state behavior. Figure 1. Internal schematic diagram Table 1. Device summary Marking GD10NC60S GP10NC60S Package DPAK TO-220 Packaging Tape and reel Tube Order codes S.

STGD10NC60S Datasheet (1.21 MB)

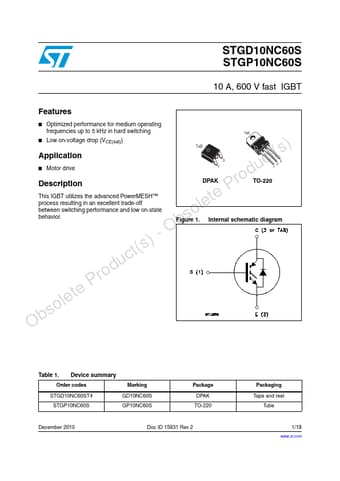

Preview of STGD10NC60S PDF
