STGD19N40LZ

Automotive-grade 390V internally clamped IGBT

STGD19N40LZ Features

* AEC-Q101 qualified

* 180 mJ of avalanche energy @ TC = 150 °C, L = 3 mH

* ESD gate-emitter protection

* Gate-collector high voltage clamping

* Logic level gate drive

* Low saturation voltage

* High pulsed current capability

* Gate and

STGD19N40LZ General Description

This application-specific IGBT utilizes the most advanced PowerMESH™ technology. The built-in Zener diodes between gate-collector and gateemitter provide overvoltage protection capabilities. The device also exhibits low on-state voltage drop and low threshold drive for use in automotive ignition sys.

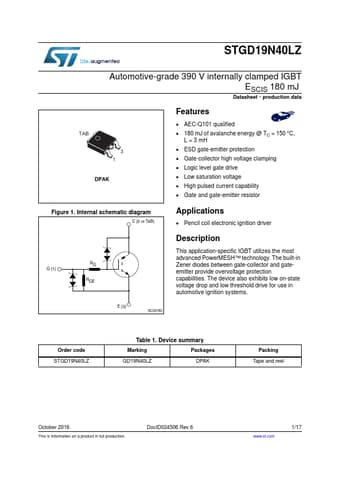

STGD19N40LZ Datasheet (1.04 MB)

Preview of STGD19N40LZ PDF

Datasheet Details

Part number:

STGD19N40LZ

Manufacturer:

STMicroelectronics ↗

File Size:

1.04 MB

Description:

Automotive-grade 390v internally clamped igbt.
