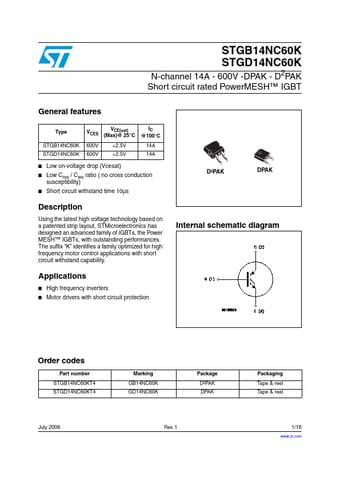

STGD14NC60K Datasheet, Igbt, ST Microelectronics

STGD14NC60K Features

• Igbt Type STGB14NC60K STGD14NC60K
• VCES 600V 600V VCE(sat) (Max)@ 25°C <2.5V <2.5V IC @100°C 14A 14A 3 3 1 Low on-voltage drop (Vcesat) Low Cres / Cies ratio

PDF File Details

Part number:

STGD14NC60K

Manufacturer:

STMicroelectronics ↗

File Size:

457.52kb

Download:

📄 Datasheet

Description:

N-channel igbt. Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBT

STGD14NC60K Application

• Applications with short circuit withstand capability. Internal schematic diagram Applications
• High frequency inverters Motor
