STGD18N40LZT4 Datasheet, Igbt, STMicroelectronics

STGD18N40LZT4 Features

• Igbt TAB 23 1 DPAK C (2 or TAB) RG G (1)
• AEC-Q101 qualified
• SCIS energy of 180 mJ @ TC = 150 °C, L = 3 mH
• Parts are 100% tested in SCIS
• ESD gate-emi

PDF File Details

Part number:

STGD18N40LZT4

Manufacturer:

STMicroelectronics ↗

File Size:

461.94kb

Download:

📄 Datasheet

Description:

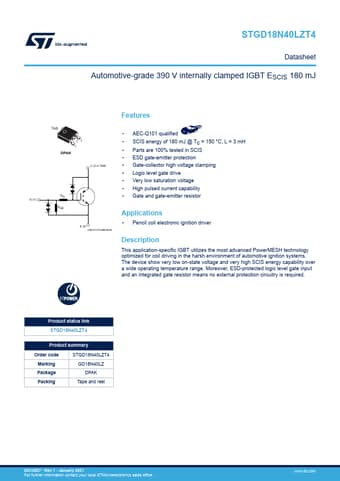

Automotive-grade 390v internally clamped igbt. This application-specific IGBT utilizes the most advanced PowerMESH technology optimized for coil driving in the harsh environment o

STGD18N40LZT4 Application

• Applications E (3) IGBTG1C2TABE3ESD
• Pencil coil electronic ignition driver Description This application-specific IGBT utilizes the mos
