STGD6NC60HDT4 IGBT

STMicroelectronics

STGD6NC60HDT4 Description

STGD6NC60HDT4 Datasheet N-channel 600 V, 7 A very fast IGBT TAB 23 1 DPAK C(2, TAB) G(1) E(3) .
This device is a very fast IGBT developed using advanced PowerMESH™ technology.

STGD6NC60HDT4 Features

* Order codes VCES VCE(sat) max. IC (at TC = 100 °C) STGD6NC60HDT4 600 V 2.5 V 7A
* Low on-voltage drop (VCE(sat))
* Low CRES / CIES ratio (no cross-conduction susceptibility)
* Very soft ultra fast recovery antiparallel diode
* High frequency operation NG1E3C

STGD6NC60HDT4 Applications

* High-frequency inverters
* SMPS and PFC in both hard switch and resonant topologies

📥 Download Datasheet

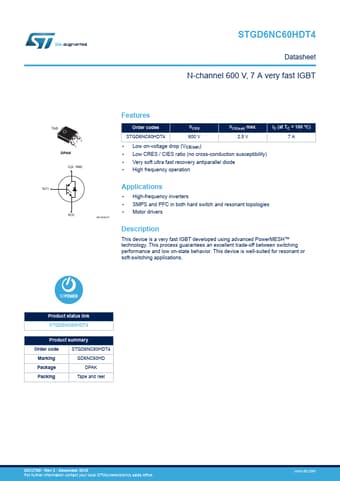

STGD6NC60HDT4 Datasheet Preview — Preview of STGD6NC60HDT4 PDF
