STGD7NB60H Datasheet - ST Microelectronics

N-CHANNEL IGBT

STGD7NB60H General Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding perfomances. The suffix "H" identifies a family optimized for high frequency applications (up to 50kHz)in order to achieve ve.

STGD7NB60H Datasheet (327.19 KB)

STGD7NB60H Datasheet Preview — Preview of STGD7NB60H PDF

Datasheet Details

Part number:

STGD7NB60H

Manufacturer:

STMicroelectronics ↗

File Size:

327.19 KB

Description:

N-channel igbt.

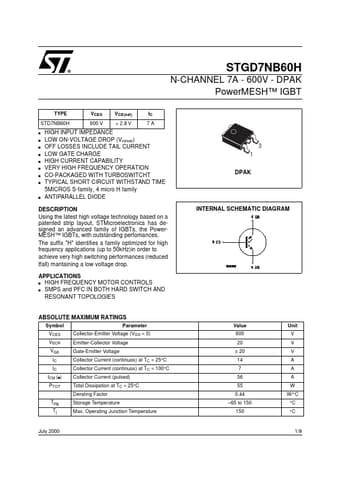

STGD7NB60H N-CHANNEL 7A - 600V - DPAK PowerMESH™ IGBT TYPE STD7NB60H s s s s s s s s VCES 600 V VCE(sat) < 2.8 V IC 7A s HIGH INPUT IMPEDANCE LOW.
