N-CHANNEL 7A - 600V TO-220 / DPAK PowerMESH IGBT

STGD7NB60M General Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding perfomances. The suffix "M" identifies a family optimized to achieve very low switching switching times for high frequency ap.

STGD7NB60M Datasheet (440.38 KB)

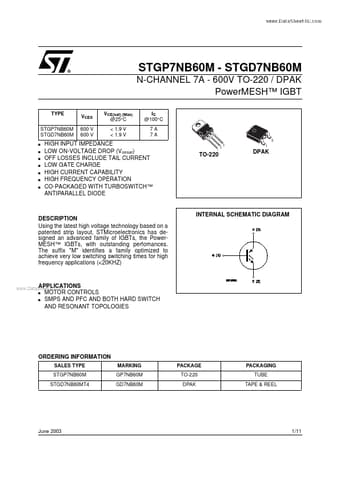

STGD7NB60M Datasheet Preview — Preview of STGD7NB60M PDF

Datasheet Details

Part number:

STGD7NB60M

Manufacturer:

STMicroelectronics ↗

File Size:

440.38 KB

Description:

N-channel 7a - 600v to-220 / dpak powermesh igbt.
STGP7NB60M - STGD7NB60M N-CHANNEL 7A - 600V TO-220 / DPAK PowerMESH™ IGBT TYPE STGP7NB60M STGD7NB60M s s s s s s s VCES 600 V 600 V VCE(sat) (Max) @.
