STGD7NB60S Datasheet - ST Microelectronics

N-CHANNEL IGBT

STGD7NB60S General Description

Using the latest high voltage technology based on a patented strip layout, SGS-Thomson has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding perfomances. The suffix ”S” identifies a family optimized to achieve minimum on-voltage drop for low frequency applications (<1kHz)..

STGD7NB60S Datasheet (290.54 KB)

STGD7NB60S Datasheet Preview — Preview of STGD7NB60S PDF

Datasheet Details

Part number:

STGD7NB60S

Manufacturer:

STMicroelectronics ↗

File Size:

290.54 KB

Description:

N-channel igbt.

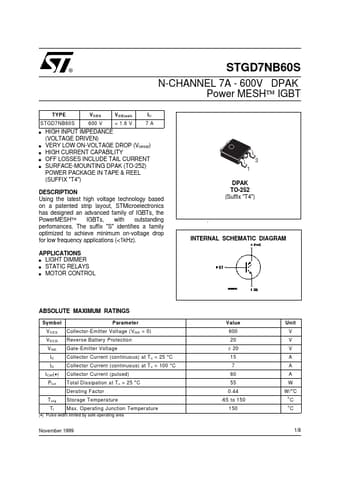

® STGD7NB60S N-CHANNEL 7A - 600V - DPAK Power MESH™ IGBT TYPE STGD7NB60S s V CES 600 V V CE(sat ) < 1.6 V IC 7 A s s s HIGH INPUT IMPEDANCE (VO.
