STGD8NC60KD

short circuit rugged IGBT

STGD8NC60KD Features

* Lower on voltage drop (VCE(sat))

* Lower Cres / Cies ratio (no cross-conduction susceptibility)

* Very soft ultra fast recovery antiparallel diode

* Short-circuit withstand time 10 μs Applications

* High frequency motor controls

* SMPS and PF

STGD8NC60KD General Description

These devices are very fast IGBTs developed using advanced PowerMESH technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior. These devices are well-suited for resonant or soft-switching applications. Product status links STGB8NC60KD STGD8.

STGD8NC60KD Datasheet (1.79 MB)

Preview of STGD8NC60KD PDF

Datasheet Details

Part number:

STGD8NC60KD

Manufacturer:

STMicroelectronics ↗

File Size:

1.79 MB

Description:

Short circuit rugged igbt.

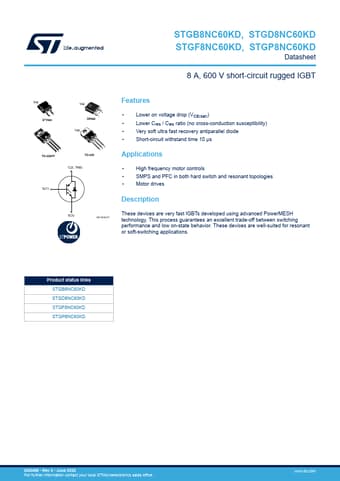

STGB8NC60KD, STGD8NC60KD STGF8NC60KD, STGP8NC60KD Datasheet 8 A, 600 V short-circuit rugged IGBT TAB 3 1 D2 PAK TAB 23 1 DPAK TAB 3 2 1 TO-220FP T.
