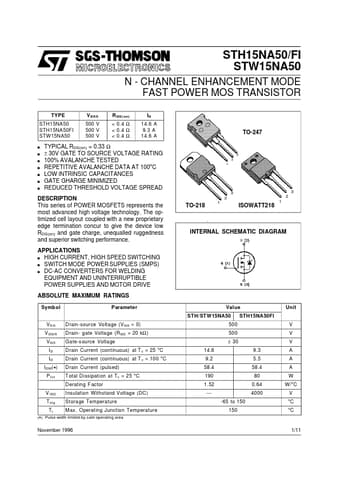

STH15NA50 Datasheet, Mosfet, ST Microelectronics

PDF File Details

Part number:

STH15NA50

Manufacturer:

STMicroelectronics ↗

File Size:

243.26kb

Download:

📄 Datasheet

Description:

N-channel power mos mosfet. This series of POWER MOSFETS represents the most advanced high voltage technology. The optimized cell layout coupled with a new propr

STH15NA50 Application

• Applications HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POW
