STH7NA100FI Datasheet - ST Microelectronics

STH7NA100FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS

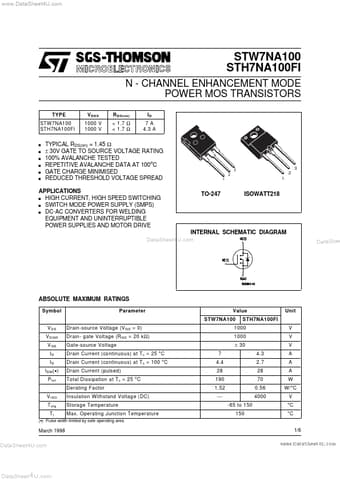

www.DataSheet4U.com STW7NA100 STH7NA100FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS TYPE STW7NA100 STH7NA100FI s s s s s s V DSS 1000 V 1000 V R DS(on) < 1.7 Ω < 1.7 Ω ID 7A 4.3 A TYPICAL RDS(on) = 1.45 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC GATE CHARGE MINIMISED REDUCED THRESHOLD VOLTAGE SPREAD TO-247 3 2 1 3 2 1 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s DC-AC CONVERTERS FOR WELDIN.

STH7NA100FI Datasheet (237.21 KB)

STH7NA100FI Datasheet Preview — Preview of STH7NA100FI PDF

Datasheet Details

Part number:

STH7NA100FI

Manufacturer:

STMicroelectronics ↗

File Size:

237.21 KB

Description:

N - channel enhancement mode power mos transistors.
