STH7NA90FI Datasheet - ST Microelectronics

STH7NA90FI N - CHANNEL POWER MOSFET

www.DataSheet4U.com ® STW7NA90 STH7NA90FI N - CHANNEL 900V - 1.05Ω - 7A - TO-247/ISOWATT218 FAST POWER MOSFET TYPE STW 7NA90 STH7NA90F I s s s s s s s V DSS 900 V 900 V R DS(on) < 1.3 Ω < 1.3 Ω ID 7 A 4.7 A TYPICAL RDS(on) = 1.05 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCE GATE CHARGE MINIMIZED REDUCED VOLTAGE SPREAD 1 2 3 2 1 3 APPLICATIONS TO-247 ISOWATT218 s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MOD.

STH7NA90FI Datasheet (304.58 KB)

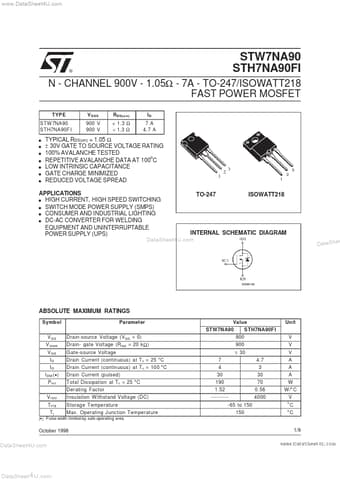

STH7NA90FI Datasheet Preview — Preview of STH7NA90FI PDF

Datasheet Details

Part number:

STH7NA90FI

Manufacturer:

STMicroelectronics ↗

File Size:

304.58 KB

Description:

N - channel power mosfet.
