STH8NA60FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

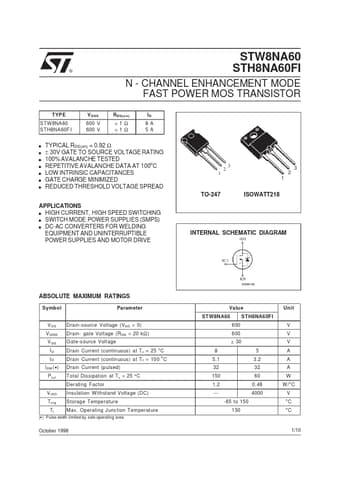

® STW8NA60 STH8NA60FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STW 8NA60 STH8NA60F I V DSS 600 V 600 V R DS(on) <1 Ω <1 Ω ID 8 A 5 A s s s s s s s TYPICAL RDS(on) = 0.92 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD 1 2 3 2 1 3 TO-247 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTER.

STH8NA60_STMicroelectronics.pdf

STH8NA60FI Datasheet Preview — This datasheet PDF includes multiple part numbers: STH8NA60FI, STH8NA60. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STH8NA60FI, STH8NA60

Manufacturer:

STMicroelectronics ↗

File Size:

124.70 KB

Description:

N - channel enhancement mode fast power mos transistor.

Note:

This datasheet PDF includes multiple part numbers: STH8NA60FI, STH8NA60.
Please refer to the document for exact specifications by model.
