STH8NB90, STH8NB90FI N-CHANNEL MOSFET

ST Microelectronics

Description

N-CHANNEL 900V - 1.1 Ω - 8 A TO-247/ISOWATT218 PowerMesh™ MOSFET TYPE STW8NB90 STH8NB90FI s s s s s STW8NB90 STH8NB90FI VDSS 900 V 900 V RDS(on) < .
Using the latest high voltage MESH OVERLAY ™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performance.

📥 Download Datasheet

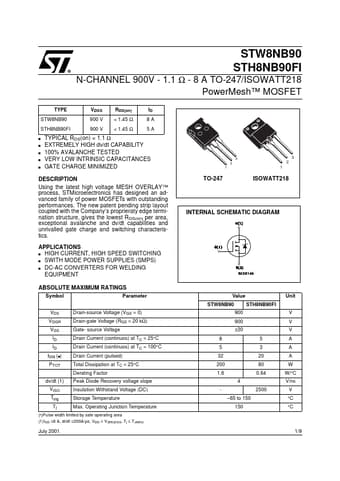

STH8NB90 Datasheet Preview — This datasheet PDF includes multiple part numbers: STH8NB90, STH8NB90FI. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STH8NB90, STH8NB90FI
Manufacturer: STMicroelectronics ↗
File Size: 311.87 KB
Datasheet: STH8NB90FI_STMicroelectronics.pdf
Description: N-CHANNEL MOSFET
Note: This datasheet PDF includes multiple part numbers: STH8NB90, STH8NB90FI.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain
