STP16CP05 Low voltage 16-Bit constant current LED sink driver

The STP16CP05 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The STP16CP05 contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bit, D-type storage register. In the output stage, sixteen regulated current sources provide fro.

STP16CP05 Features

* Low voltage power supply down to 3 V

* 16 constant current output channels

* Adjustable output current through external resistor

* Serial data IN/parallel data OUT

* Can be driven by a 3.3 V microcontroller

* Output current: 5 to 100 mA

* Max

STP16CP05 Datasheet (1.45 MB)

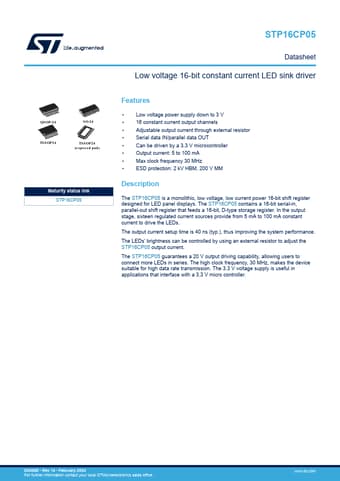

STP16CP05 Datasheet Preview — Preview of STP16CP05 PDF

Datasheet Details

Part number:

STP16CP05

Manufacturer:

STMicroelectronics ↗

File Size:

1.45 MB

Description:

Low voltage 16-bit constant current led sink driver.
