STP16CPP05

Low voltage 16-bit constant current LED sink driver

STP16CPP05 Features

* 16 constant current output channels Adjustable output current through external resistor Output current: 3-40 mA Serial data in/parallel data ouT 3.3 V or 5 V supply voltage Max clock frequency 30 MHz Schmitt-trigger input ESD protection 2 kV HBM

STP16CPP05 General Description

The STP16CPP05 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The STP16CPP05 contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bit, D-type storage register. In the output stage, sixteen regulated current sources provide f.

STP16CPP05 Datasheet (787.09 KB)

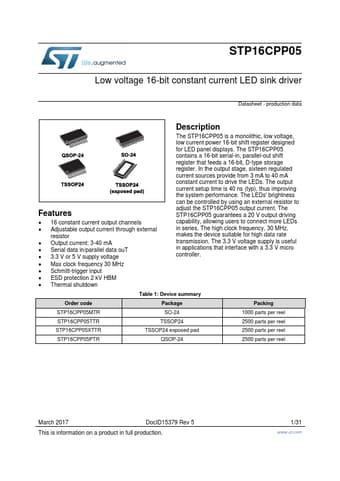

Preview of STP16CPP05 PDF

Datasheet Details

Part number:

STP16CPP05

Manufacturer:

STMicroelectronics ↗

File Size:

787.09 KB

Description:

Low voltage 16-bit constant current led sink driver.
