STP16CPPS05 - Low voltage 16-bit constant current LED sink driver

ST Microelectronics

Datasheet Details

Part number	STP16CPPS05
Manufacturer	STMicroelectronics ↗
File Size	879.61 KB
Description	Low voltage 16-bit constant current LED sink driver

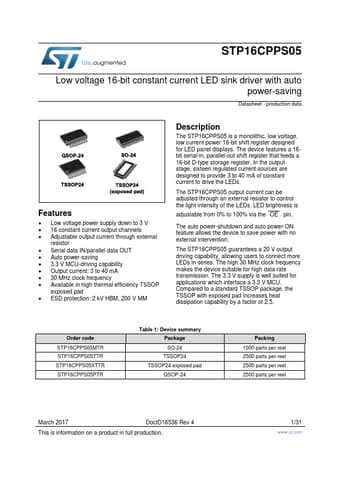

Datasheet	STP16CPPS05_STMicroelectronics.pdf

The STP16CPPS05 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays.

Low voltage power supply down to 3 V 16 constant current output channels Adjustable output current through external resistor Serial data IN/parallel data OUT Auto power-saving 3.3 V MCU-driving capability Output current: 3 to 40 mA 30 MHz clock frequency Available in high thermal efficiency TSSOP exposed pad ESD protection: 2 kV HBM, 200 V MM TSSOP24 TSSOP24 (exposed pad) QSOP-24 SO-24 The STP16CPPS05 output current can be adjusted th.
