STP160N4LF6 - N-CHANNEL POWER MOSFET

STMicroelectronics

STP160N4LF6 Datasheet Preview — Preview of STP160N4LF6 PDF

Datasheet Details

Part number	STP160N4LF6
Manufacturer	STMicroelectronics ↗
File Size	791.47 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP160N4LF6-STMicroelectronics.pdf

STP160N4LF6 Product details

Description

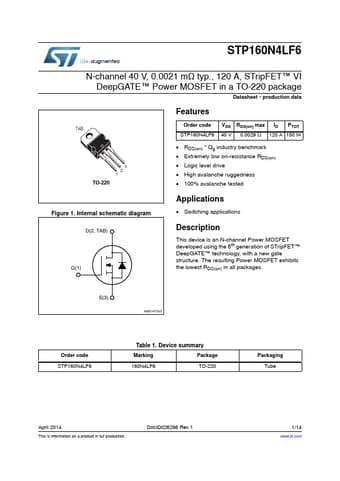

This device is an N-channel Power MOSFET th developed using the 6 generation of STripFET™ DeepGATE™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.6 $0Y Order code STP160N4LF6 Table 1. Device summary Marking Package 160N4LF6 TO-220 Packaging Tube April 2014 This is information on a product in full production.DocID026266 Rev 1 1/14 www.st.com Contents Contents STP160N4LF6 1 Electrical ratings ...

Features

Order code VDS RDS(on) max ID PTOT STP160N4LF6 40 V 0.0029 Ω 120 A 150 W.
RDS(on).
Qg industry benchmark.
Extremely low on-resistance RDS(on).
Logic level drive.
High avalanche ruggedness.
100% avalanche tested Figure 1. Internal schematic diagram 'Ć7$%.
.
