STP16C596

N-CHANNEL Power MOSFET

STP16C596 General Description

The STP16C596 is a monolithic, medium-voltage, low current power 16-bit shift register designed for LED panel displays. The STP16C596 contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bitD-type storage register. In the output stage, sixteen regulated current sources are design.

STP16C596 Datasheet (388.44 KB)

Preview of STP16C596 PDF

Datasheet Details

Part number:

STP16C596

Manufacturer:

STMicroelectronics ↗

File Size:

388.44 KB

Description:

N-channel power mosfet.

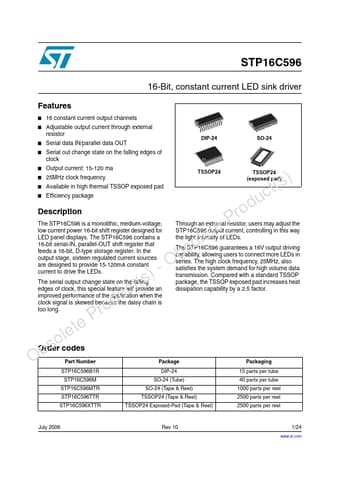

STP16C596 16-BIT CONSTANT CURRENT LED SINK DRIVER s s s s s s s s 16 CONSTANT CURRENT OUTPUT CHANNELS ADJUSTABLE OUTPUT CURRENT THROUGH EXTERNAL .
