STP16DP05

Low voltage 16-bit constant current LED sink driver

STP16DP05 Features

* Low voltage power supply down to 3 V 16 constant current output channels Adjustable output current through external resistor Short and open output error detection Serial Data IN/Parallel data OUT 3.3 V micro driver-able Output current: 5-1

STP16DP05 General Description

The STP16DP05 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The device contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bitD-type storage register. In the output stage, sixteen regulated current sources were designed to.

STP16DP05 Datasheet (1.13 MB)

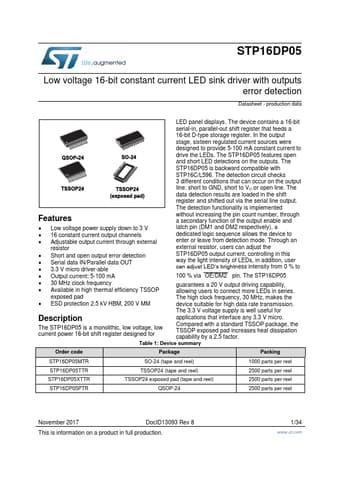

Preview of STP16DP05 PDF

Datasheet Details

Part number:

STP16DP05

Manufacturer:

STMicroelectronics ↗

File Size:

1.13 MB

Description:

Low voltage 16-bit constant current led sink driver.
