STP16CL596 General Description

The STP16CL596 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The STP16CL596 contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bitD-type storage register. In the output stage, sixteen regulated current sources were design.

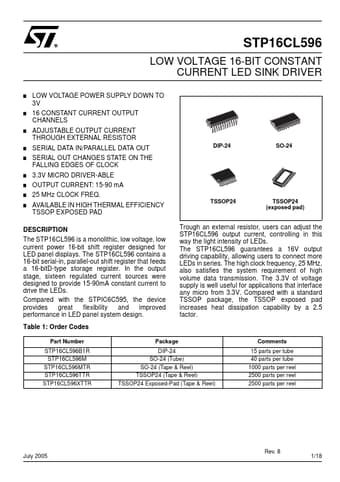

STP16CL596 Datasheet (558.97 KB)

Preview of STP16CL596 PDF

Datasheet Details

Part number:

STP16CL596

Manufacturer:

STMicroelectronics ↗

File Size:

558.97 KB

Description:

N-channel power mosfet.
STP16CL596 LOW VOLTAGE 16-BIT CONSTANT CURRENT LED SINK DRIVER I LOW VOLTAGE POWER SUPPLY DOWN TO 3V 16 CONSTANT CURRENT OUTPUT CHANNELS ADJUSTABLE O.
