STP16DPPS05 LED Drivers

ST Microelectronics

Description

www.DataSheet4U.com STP16DPPS05 Low voltage 16-bit constant current LED sink driver with output error detection and auto power-saving Preliminary dat.
The STP16DPPS05 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays.

📥 Download Datasheet

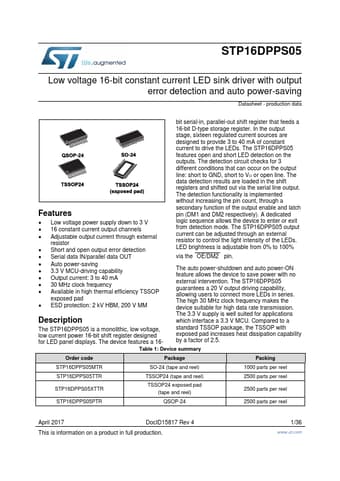

STP16DPPS05 Datasheet Preview — Preview of STP16DPPS05 PDF

Datasheet Specifications

Part number: STP16DPPS05
Manufacturer: STMicroelectronics ↗
File Size: 1.07 MB
Datasheet: STP16DPPS05_STMicroelectronics.pdf
Description: LED Drivers

Features

* Low voltage power supply down to 3 V 16 constant current output channels Adjustable output current through external resistor Short and open output error detection Serial data IN/parallel data OUT Auto power-saving 3.3 V MCU-driving c

Applications

* which interface a 3.3 V MCU. Compared to a standard TSSOP package, the TSSOP with exposed pad increases heat dissipation capability by a factor of 2.5 Package SO-24 (tape and reel) TSSOP24 (tape and reel) TSSOP24 exposed pad (tape and reel) QSOP-24 Doc ID 15817 Rev 1 Packaging 1000 parts per reel
