STP160N75F3 Datasheet, Mosfet, ST Microelectronics

STP160N75F3 Features

  • Mosfet Type STB160N75F3 STP160N75F3 STW160N75F3 VDSS 75V 75V 75V RDS(on) 4.2mΩ 4.5mΩ 4.5mΩ ID 120A (1) 3 120A (1) 120A (1) 1 2 TO-220 TO-247 1. Current limited by package

PDF File Details

Part number:

STP160N75F3

Manufacturer:

STMicroelectronics ↗

File Size:

394.82kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronics unique “Single Feature Size™“strip-based

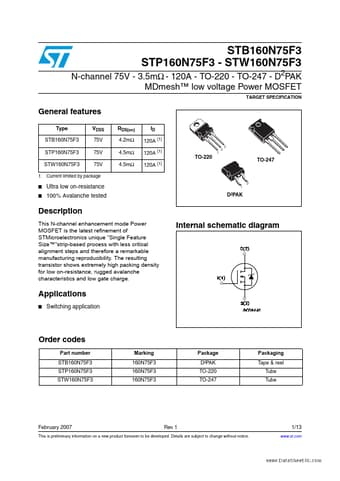

Datasheet Preview: STP160N75F3 📥 Download PDF (394.82kb)
Page 2 of STP160N75F3 Page 3 of STP160N75F3

STP160N75F3 Application

  • Applications
  • Switching application Order codes Part number STB160N75F3 STP160N75F3 STW160N75F3 Marking 160N75F3 160N75F3 160N75F3 Packag
