STP18NM60N

Power MOSFET

STP18NM60N Features

* Order codes VDSS (@Tjmax) RDS(on) max. ID PW STB18NM60N STF18NM60N STI18NM60N STP18NM60N STW18NM60N 650 V 110 W 30 W < 0.285 Ω 13 A 110 W

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Application Switching applications Description

STP18NM60N General Description

These devices are made using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficienc.

STP18NM60N Datasheet (1.11 MB)

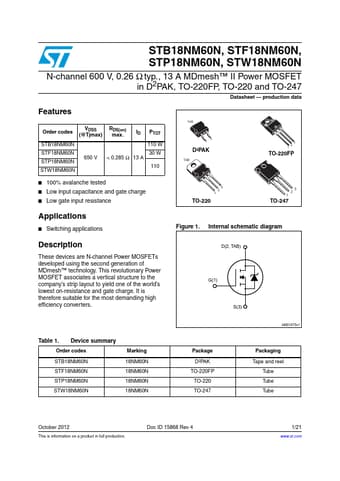

Preview of STP18NM60N PDF

Datasheet Details

Part number:

STP18NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

1.11 MB

Description:

Power mosfet.
STB18NM60N, STF18NM60N, STI18NM60N STP18NM60N, STW18NM60N N-channel 600 V, 0.27 Ω, 13 A MDmesh™ II Power MOSFET in TO-220, TO-220FP, TO-247, D²PAK and.
