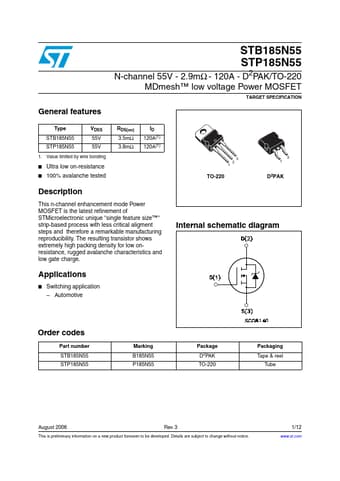

STP185N55 Datasheet, Mosfet, ST Microelectronics

STP185N55 Features

• Mosfet Type STB185N55 STP185N55 VDSS 55V 55V RDS(on) 3.5mΩ 3.8mΩ ID 120A(1) 120A(1) 3 1 2 1. Value limited by wire bonding
• 3 1 Ultra low on-resistance 100% avalanche tes

PDF File Details

Part number:

STP185N55

Manufacturer:

STMicroelectronics ↗

File Size:

246.15kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This n-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronic unique “single feature size™“ strip-based

STP185N55 Application

• Applications
• Switching application
    – Automotive Order codes Part number STB185N55 STP185N55 Marking B185N55 P185N55 Pack
