STP180N55F3 - N-CHANNEL MOSFET

STMicroelectronics

STP180N55F3 Datasheet Preview — Preview of STP180N55F3 PDF

Datasheet Details

Part number	STP180N55F3
Manufacturer	STMicroelectronics ↗
File Size	446.99 KB
Description	N-CHANNEL MOSFET
Datasheet	STP180N55F3-STMicroelectronics.pdf

STP180N55F3 Product details

Description

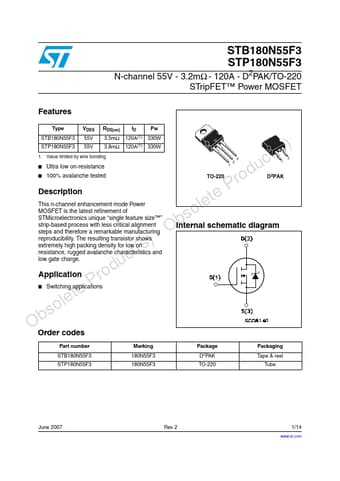

lete This n-channel enhancement mode Power MOSFET is the latest refinement of so STMicroelectronics unique “single feature size™” b strip-based process with less critical alignment O steps and therefore a remarkable manufacturing - reproducibility.The resulting transistor shows ) extremely high packing density for low on t(s resistance, rugged avalanche characteristics and c low gate charge.rodu Application Obsolete P Switching applications 3 2 1 TO-220 3 1 D2PAK Internal schematic d

Features

Type VDSS RDS(on) ID Pw STB180N55F3 55V ) STP180N55F3 55V 3.5mΩ 120A(1) 330W 3.8mΩ 120A(1) 330W t(s 1. Value limited by wire bonding uc.
Ultra low on-resistance d.
100% avalanche tested Pro.
