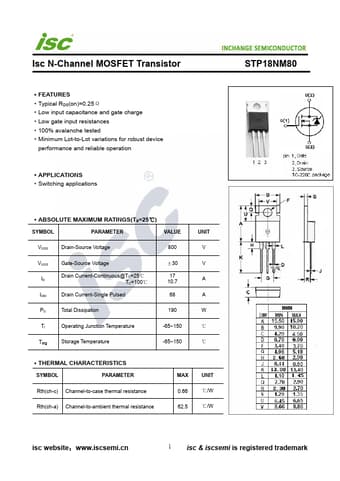

STP18NM80 Datasheet, Mosfet, INCHANGE

STP18NM80 Features

• Mosfet
• Typical RDS(on)=0.25Ω
• Low input capacitance and gate charge
• Low gate input resistances
• 100% avalanche tested
• Minimum Lot-to-Lot variations f

PDF File Details

Part number:

STP18NM80

Manufacturer:

INCHANGE

File Size:

201.40kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

STP18NM80 Application

• Applications
• Switching applications INCHANGE Semiconductor STP18NM80
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE
