STP18N55M5 - N-channel Power MOSFET

STMicroelectronics

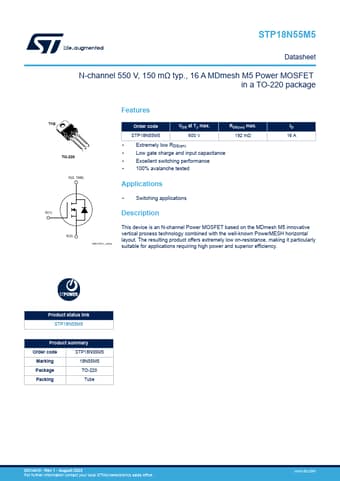

STP18N55M5 Datasheet Preview — Preview of STP18N55M5 PDF

Datasheet Details

Part number	STP18N55M5
Manufacturer	STMicroelectronics ↗
File Size	633.52 KB
Description	N-channel Power MOSFET
Datasheet	STP18N55M5_STMicroelectronics.pdf

STP18N55M5 Product details

Description

This device is an N-channel Power MOSFET based on the MDmesh M5 innovative S(3) vertical process technology combined with the well-known PowerMESH horizontal layout.The resulting product offers extremely low on-resistance, making it particularly AM01475v1_noZen suitable for applications requiring high power and superior efficiency.Product status link STP18N55M5 Product summary Order code STP18N55M5 Marking 18N55M5 Package TO-220 Packing Tube DS14410 - Rev 1 - August 2023 For fu

Features

TAB TO-220 1 23 D(2, TAB) Order code VDS at TJ max. RDS(on) max. ID STP18N55M5 600 V 192 mΩ 16 A.
Extremely low RDS(on).
Low gate charge and input capacitance.
Excellent switching performance.
100% avalanche tested.
