STP18NM80 - N-channel Power MOSFET

STMicroelectronics

STP18NM80 Datasheet Preview — Preview of STP18NM80 PDF

Datasheet Details

Part number	STP18NM80
Manufacturer	STMicroelectronics ↗
File Size	534.80 KB
Description	N-channel Power MOSFET
Datasheet	STP18NM80-STMicroelectronics.pdf

STP18NM80 Product details

Description

These N-channel Power MOSFETs are developed using STMicroelectronics’ revolutionary MDmesh™ technology, which associates the multiple drain process with the company's PowerMESH™ horizontal layout.

Features

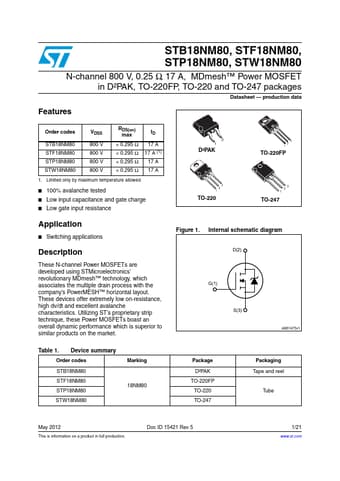

Order codes STB18NM80 STF18NM80 STP18NM80 STW18NM80 VDSS 800 V 800 V 800 V 800 V RDS(on) max < 0.295 Ω < 0.295 Ω < 0.295 Ω < 0.295 Ω ID 3 3 1 2 17 A 17 A (1) 17 A 17 A 1 D²PAK TO-220FP 1. Limited only by maximum temperature allowed 3.
100% avalanche tested Low input capacitance and gate charge Low gate input resistance 1 2 2 1 3 TO-220 TO-247.
