STP18N65M5 - N-channel Power MOSFET

STMicroelectronics

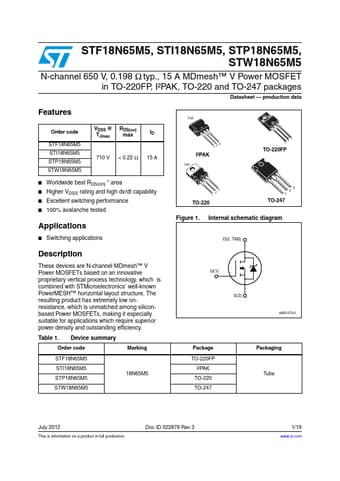

STP18N65M5 Datasheet Preview — Preview of STP18N65M5 PDF

Datasheet Details

Part number	STP18N65M5
Manufacturer	STMicroelectronics ↗
File Size	787.69 KB
Description	N-channel Power MOSFET
Datasheet	STP18N65M5-STMicroelectronics.pdf

STP18N65M5 Product details

Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

Features

TAB Order code STF18N65M5 STI18N65M5 STP18N65M5 STW18N65M5.
VDSS @ TJmax RDS(on) max ID 3 3 12 1 2 TO-220FP 710 V < 0.22 Ω 15 A TAB I²PAK Worldwide best RDS(on).
area Higher VDSS rating and high dv/dt capability Excellent switching performance 100% avalanche tested Figure 1. Internal schematic diagram TO-220 3 1 2 2 1 3 TO-247.
