STP180NS04ZC Datasheet, Mosfet, STMicroelectronics

STP180NS04ZC Features

• Mosfet TAB 3 2 1 TO-220 Order code VDS RDS(on) max ID STP180NS04ZC 40 V clamped 4.2 mΩ 120 A
• Low capacitance and gate charge
• 100% avalanche tested
• 175 °C ma

PDF File Details

Part number:

STP180NS04ZC

Manufacturer:

STMicroelectronics ↗

File Size:

417.64kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This fully clamped Power MOSFET is manufactured using an advanced mesh overlay process which is based on an innovative strip layout.

STP180NS04ZC Application

• Applications

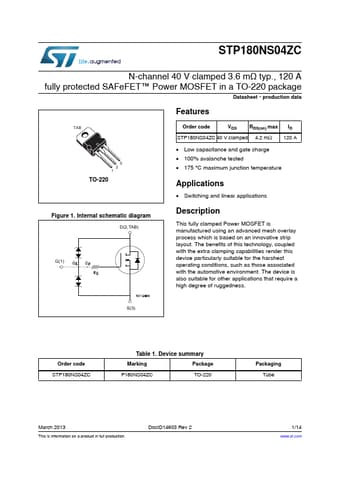

• Switching and linear applications Figure 1. Internal schematic diagram D(2,TAB) G(1) Description This fully clamped Power M
