STP185N55F3 - N-CHANNEL POWER MOSFET

STMicroelectronics

STP185N55F3 Datasheet Preview — Preview of STP185N55F3 PDF

Datasheet Details

Part number	STP185N55F3
Manufacturer	STMicroelectronics ↗
File Size	319.07 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP185N55F3-STMicroelectronics.pdf

STP185N55F3 Product details

Description

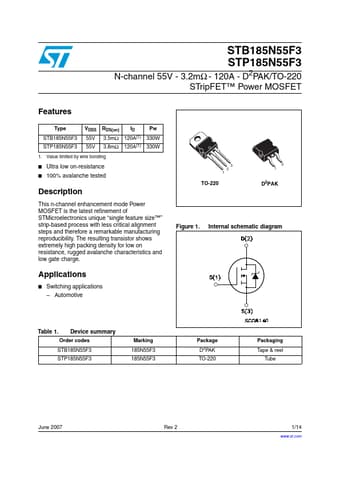

This n-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronics unique “single feature size™” strip-based process with less critical alignment steps and therefore a remarkable manufacturing reproducibility. Switching applications Automotive 3 2 1 TO-220 3 1 D2PAK Figure 1. Internal schematic diagram

Features

Type STB185N55F3 STP185N55F3 VDSS 55V 55V RDS(on) 3.5mΩ 3.8mΩ ID 120A(1) 120A(1) Pw 330W 330W 1. Value limited by wire bonding.
Ultra low on-resistance.
100% avalanche tested.
