STP28NM50N

N-Channel Power MOSFET

STP28NM50N Features

* Type STB28NM50N STF28NM50N STP28NM50N STW28NM50N

* VDSS (@Tjmax) RDS(on) max ID 3 1 2 3 1 2 TO-220FP 550 V < 0.158 Ω 21 A TO-220 100% avalanche tested Low input capacitance and gate charge Low gate input resistance 1 3 1 2 3 D²PAK TO-247 Application Switching application

STP28NM50N General Description

These devices are made using the second generation of MDmeshTM technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficien.

STP28NM50N Datasheet (924.95 KB)

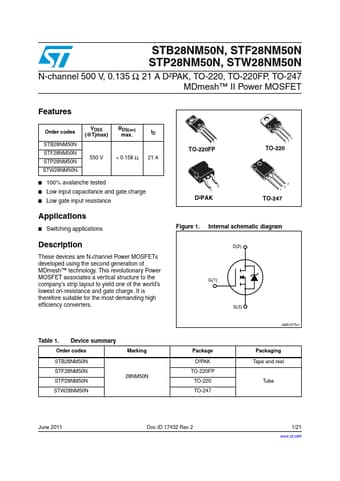

Preview of STP28NM50N PDF

Datasheet Details

Part number:

STP28NM50N

Manufacturer:

STMicroelectronics ↗

File Size:

924.95 KB

Description:

N-channel power mosfet.
www.DataSheet4U.com STB28NM50N, STF28NM50N STP28NM50N, STW28NM50N N-channel 500 V, 0.135 Ω, 21 A D2PAK, TO-220, TO-220FP, TO-247 MDmesh™ II Power MOS.
