STP28N60M2

N-CHANNEL POWER MOSFET

STP28N60M2 Features

* Order code STB28N60M2 STI28N60M2 STP28N60M2 STW28N60M2 VDS @ TJmax 650 V RDS(on) max. 0.150 Ω ID 22 A Figure 1: Internal schematic diagram D (2 TAB )

* Extremely low gate charge

* Excellent output capacitance (COSS) profile

* 100% avalanche tested

* Zener-protected Applications

STP28N60M2 General Description

These devices are N-channel Power MOSFETs G(1) developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, these devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency .

STP28N60M2 Datasheet (878.35 KB)

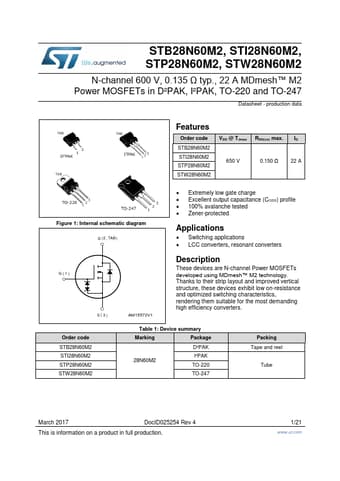

Preview of STP28N60M2 PDF

Datasheet Details

Part number:

STP28N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

878.35 KB

Description:

N-channel power mosfet.
STB28N60M2, STI28N60M2, STP28N60M2, STW28N60M2 N-channel 600 V, 0.135 Ω typ., 22 A MDmesh™ M2 Power MOSFETs in D²PAK, I²PAK, TO-220 and TO-247 Datashe.
