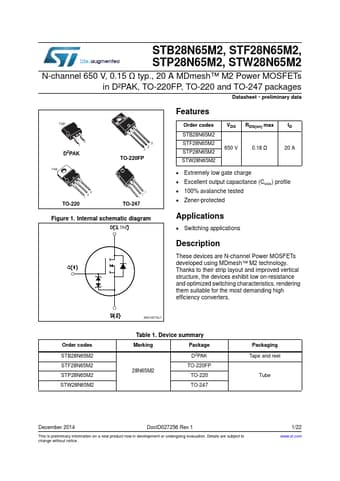

STP28N65M2 Datasheet, Mosfet, STMicroelectronics

STP28N65M2 Features

• Mosfet Order codes STB28N65M2 STF28N65M2 STP28N65M2 STW28N65M2 VDS RDS(on) max 650 V 0.18 Ω ID 20 A
• Extremely low gate charge
• Excellent output capacitance (Coss) prof

PDF File Details

Part number:

STP28N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

1.16MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical s

STP28N65M2 Application

• Applications
• Switching applications Description These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks t
