STP55NF03L N-CHANNEL 30V - 0.01 W - 55A TO-220/D2PAK/I2PAK STripFET II POWER MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

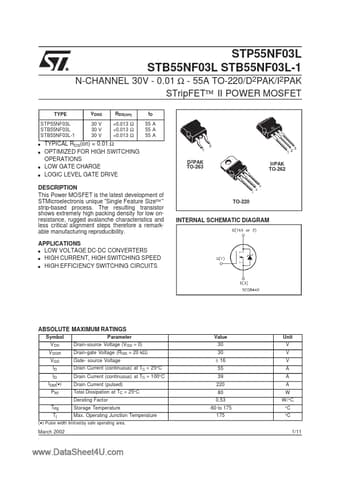

STP55NF03L STB55NF03L STB55NF03L-1 N-CHANNEL 30V - 0.01 Ω - 55A TO-220/D2PAK/I2PAK STripFET™ II POWER MOSFET TYPE STP55NF03L STB55NF03L STB55NF03L-1 s.
This Power MOSFET is the latest development of STMicroelectronis unique ”Single Feature Size™ ” strip-based process.

📥 Download Datasheet

Preview of STP55NF03L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s LOW VOLTAGE DC-DC CONVERTERS s HIGH CURRENT, HIGH SWITCHING SPEED s HIGH EFFICIENCY SWITCHING CIRCUITS 1 2 3 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR VGS ID ID IDM(
* ) Ptot Tstg Tj March 2002 . Parameter Drain-source Voltage (VGS = 0) Drain-gate Vo
