STP5NA80, P5N N-CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

📥 Download Datasheet Datasheet Preview Page 1

Description

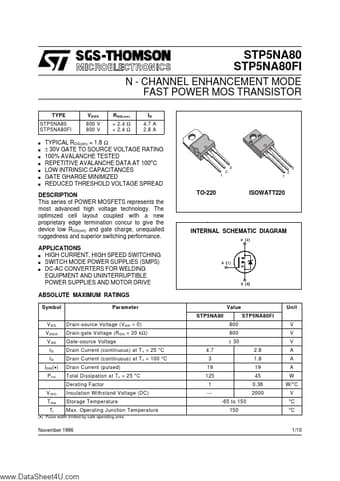

( DataSheet : www.DataSheet4U.com ) STP5NA80 STP5NA80FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STP5NA80 STP5NA80FI s s s s s s s.
This series of POWER MOSFETS represents the most advanced high voltage technology.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP5NA80, P5N. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STP5NA80, P5N
Manufacturer
STMicroelectronics ↗
File Size
303.62 KB
Datasheet
P5N-A80FI.pdf
Description
N-CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: STP5NA80, P5N.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol Parameter ISOWATT220 INTERNAL SCHEMATIC DIAGRAM Value STP5NA80 STP5NA80FI 800 800 ± 30 o Unit V DS
