STP5NA80FP N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

📥 Download Datasheet Datasheet Preview Page 1

Description

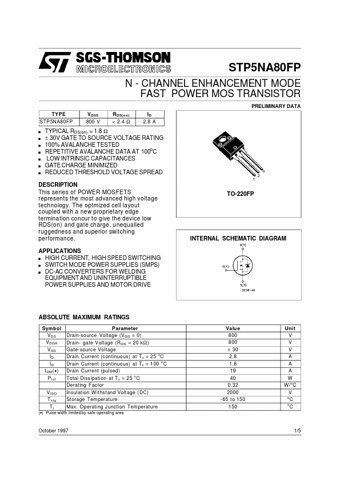

STP5NA80FP N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR PRELIMINARY DATA TYPE STP5NA80FP s s s s s s s V DSS 800 V R DS(on) < 2.4 Ω ID 2..
This series of POWER MOSFETS represents the most advanced high voltage technology.

📥 Download Datasheet

Preview of STP5NA80FP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS VDGR V GS ID ID I DM (
* ) P t ot V ISO T stg Tj Pa
