STP5NB80, N-CHANNEL PowerMESH MOSFET

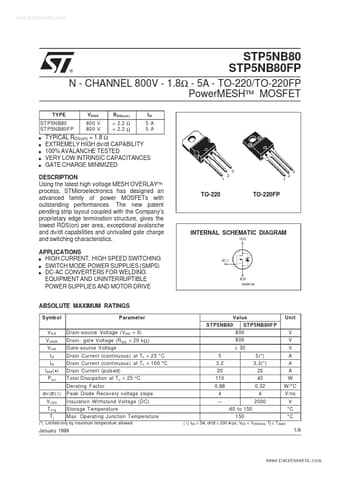

www.DataSheet4U.com ® STP5NB80 STP5NB80FP N - CHANNEL 800V - 1.8Ω - 5A - TO-220/TO-220FP PowerMESH™ MOSFET TYPE ST P5NB80 ST P5NB80FP s s s s s V .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

datasheet Preview Page 1 from Datasheet4u.com

STP5NB80_STMicroelectronics.pdf

STP5NB80 Datasheet Preview — Preview of STP5NB80 PDF

Datasheet Details

Part number:

STP5NB80

Manufacturer:

STMicroelectronics ↗

File Size:

135.89 KB

Description:

N-CHANNEL PowerMESH MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID ID I DM (
