STP5NB80FP, STP5NB80 N-CHANNEL PowerMESH MOSFET

ST Microelectronics

Description

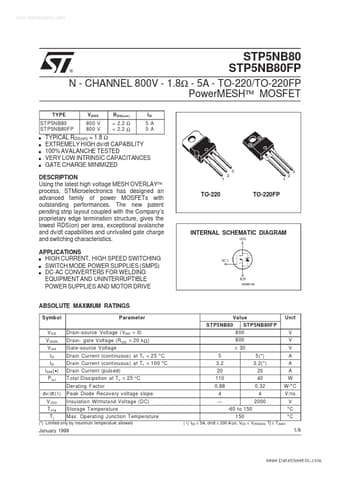

www.DataSheet4U.com ® STP5NB80 STP5NB80FP N - CHANNEL 800V - 1.8Ω - 5A - TO-220/TO-220FP PowerMESH™ MOSFET TYPE ST P5NB80 ST P5NB80FP s s s s s V .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

📥 Download Datasheet

STP5NB80FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP5NB80FP, STP5NB80. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP5NB80FP, STP5NB80
Manufacturer: STMicroelectronics ↗
File Size: 135.89 KB
Datasheet: STP5NB80_STMicroelectronics.pdf
Description: N-CHANNEL PowerMESH MOSFET
Note: This datasheet PDF includes multiple part numbers: STP5NB80FP, STP5NB80.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt( 1
